Ultrasonic Thickness Gauges

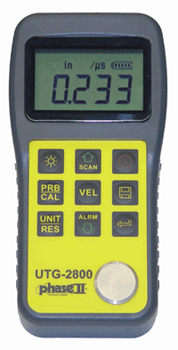

State of the art, digital ultrasonic thickness gauge is packed with features typically found on high end models only. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces.
The UTG-2800 ultrasonic thickness gauge will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.

Specifications:

Model No. UTG-2800

Display type

4-digit LCD w/Back Light

Minimum display unit

0.001�/0.01mm (selectable)

Measuring Range

starts from 0.040" to 12" in steel w/standard probe

Accuracy

+/- (0.5% thickness + .001�)

Sound velocity range

3280-32805 ft/s (1000-9999m/s)

Upper/Lower Limit Preset Alarm

Yes

Operating temperature

32-122 degrees F

Frequency

5MHz

Update range

4Hz

Memory

20 Groups (100 files/group)

Output

USB

Mini-Printer

Optional

Power supply

3v AA alkaline batteries (2pc)

Battery life

Approx. 100 hours (w/backlight off)

Power consumption

Working current is less than 3V

Dimensions

5.90� x 2.91� x 1.30� (150 x 74 x 33mm)

Weight

8.6oz (245g)


UTG-2800 ultrasonic thickness gauge comes complete with Certificate of Calibration, Operation Manual and Custom Carry Case.


ULTRASONIC WALL THICKNESS GAUGE MEASUREMENT


The use of Ultrasonic non-destructive testing (NDT) to check material properties such as thickness measurement, is now extensively used in all facets of industry. The ability to gauge thickness measurement without requiring access to both sides of the test piece, offers this technology a multitude of possible applications. Metals, plastics, ceramics, glass and other materials can easily be measured by portable ultrasonic thickness gauges with a common accuracy of.001”.

Ultrasonic thickness gauges measure the thickness of a part by measuring the time sound travels from the transducer through the material to the back end of a part, and then measures the time of reflection back to the transducer. The gauge then calculates the thickness based on the velocity of sound through the material being tested.

A broad variety of piezoelectric transducers, operating at given frequencies are utilized to generate sound when excited. Typically, a 5mhz frequency is standard on all Phase II Ultrasonic Thickness Gauges. Optional transducers are always available for a myriad of applications.

The direct contact method of pulse/echo type ultrasonic thickness gauges requires use of a couplant. Propylene Glycol is common, but many other substances can be used.

Easy to configure and use, many gauges today have the ability to retain memory, output to printers, PC’s, and handheld portable devices. With the combination of an easy menu driven gauge and the data in memory, technician/operators have a world of technology at their fingertips to obtain highly accurate and cost effective measurements for all types of thickness applications.
